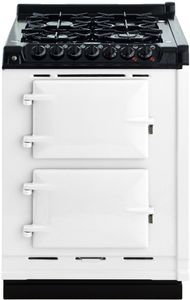

AGA 24" White Integrated Dual Fuel Range

Model #:

TCDCLPM-WHT

Model #: TCDCLPM-WHT

103110

AGA

$10,269.99

At a Glance

Product Dimensions 36"h x 23.5"w x 27.5"d

Working alongside, but independently to, your AGA range, the integrated module offers additional flexibility, featuring a conventional oven with grill, a convection oven and four top gas burners which provide instant power and rapid response for any type of cooking.Read More

$10,269.99

Color Finish Name:White

What We Offer

Protect Your Purchase

None Selected

Services

None Selected

You Might Also Need

None Selected

Request More Info

People also viewed:

Get to know this product.

Product Overview

Product Overview

The AGA Integrated Dual Fuel Module is designed for those who love the many benefits of their cast iron AGA range and wish to incorporate the joys of open flame and conventional ovens. This integrated solution attaches to any 3-oven AGA Total Control or 3-oven AGA Dual Control. Want the Ultimate AGA? Attach the Integrated Dual Fuel Module to any 5-oven AGA Total or Dual Control and create a 7-oven AGA cooking experience! The Integrated Dual Fuel Module gives you even more choice and flexibility. Working alongside, but independently to your 3-oven AGA range, it gives you the option of a conventional and a convection oven along with four gas top burners. The Gas Top Burners are available in natural gas and liquid propane. The ideal cooking companion for your cast iron AGA range, the Integrated Module fits neatly at its left-hand side. Color options to match your existing AGA range are also available. Please note, minor color changes may occur on your cast iron range due to its unique heat properties so there may be slight coloration differences.

Iconic AGA signature look with cast iron doors and cast iron front
Four-ring gas burner provides instant power and a rapid response for any type of cooking
The 4 gas burner range top features two 6,150 BTU, an 11,000 BTU and one 12,000 BTU gas burners – available in natural gas and liquid propane
Special oven linings – to save on cleaning time, the ovens have a specially developed lining which helps them keep themselves clean during cooking
Boasts one Conventional Oven with Rapid Response Electric Grill/Broiler, a Convection Oven with fan
Conventional oven boasts a powerful two 4-pass Infrared Broiler with a 2,010 watt output

Useful Documents

Specification Sheet

Installation Guide

Specifications

General Specs
Color	White
Air Fry	No
Appliance Fit Width (in.)	24
Manufacturer Warranty	1 Year
Capacity (cu ft)	4.9
Color Finish Name	White
ADA Compliant	No
Induction Cooking	No
Range Type	Slide-In
Number of Elements/Burners	4
Fuel Type	Dual Fuel (LP)
Number of Oven(s)	Double
Depth (in.)	27.5
Height (in.)	36
Width (in.)	23.5
Construction
Handle Color:	Color-Matched
Grate Color:	Black
Door Swing Option:	Left Hinge, Left Swing
Dimensions
Shipping Weight:	393
Interior Dimensions:	(Oven 1) 13.75" x 19" x 8.5" (Oven 2) 13.63" x 17" x 10" (WxDxH)
Weight:	284
Display
Controls:	Mechanical
Other
Cooking System:	Convection; Conventional
Broiler Wattage:	2010
Ignition:	Electronic
Type Burner:	Sealed
Number of Oven(s):	2
Baking:	Yes
Roasting:	Yes
Broiling:	Yes
Specifications
Electrical Requirements:	240 V; 60 Hz; 40 A
Styling
Control Panel Color:	Black
Cooktop Color:	Black
